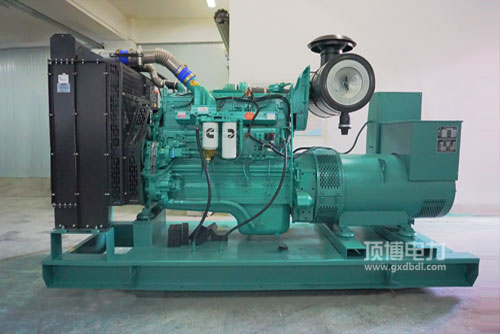

224-310KW广西顶博发电机组制造:康明斯发电用发动机可靠性高：高强度合金铸造缸体、可锻铸铁(FCD) 活塞，刚性更好，降低振动和噪声，提高了发动机适应更高的爆发压力。

High reliability: intensified alloy casting cylinder and Ferrous Cast Ductile (FCD) piston provide engine a better rigidity performance and lower vibration & noise, and also make the engine adapt to higher explosion pressure.

康明斯生产发电用启倾向然油生活性好: 比较好的的然油把控好设计方案，别具一格 的STC、ESTC 分级分类把控好设计方案，特色设计方案的活赛上端助燃室，油田喷出然油，能够有力做雾化，助燃能够有力。

Good fuel economy: Advanced fuel control system, unique STC, ESTC step control system, specilly-designed piston topchamber and high pressure fuel injection lead to an excellent fuel consumption rate and emission performance of engine.

康明斯风能发电用起倾向瞬态效能优良: 很好的起倾向整体化设计构思，做好康明斯有趣的EFC软件系统，操纵定位精度就越高，异常时刻快。

Excellent transient performance: perfect overall engine design with unique Cummins EFC system, high precision on control and quick response time.

康明斯发电站用发起机升热效率高: 产品 方案紧凑型suv.外貌布置房间合理化，使用稳定。High lift power: Integrated and compact design, reasonable layout and smooth operation.

电喷形号 QSNT. QSK19. QSK38. QSK50充分考虑中国大非通道三一阶段及美国Tier2. Tier 3污染物标准规定。

Electric fuel injection engines (QSNT,QSK19,QSK38,QSK50) meet the Tier3 emission regulations for China non-road vehicles and Tier2 & Tier3 emission regulations of North America.

零备品备件必须性好， 热车机运动及检修养护快捷，成本投入低。Good availbility of spare parts, smooth engine operation, convenient engine maintenance and low cost.

发动机规格Engine Specifications

工作电压使用范围 Power Range   224-310KW形式 Type   直列/六缸/四冲程/四气门  In-ine/6-Cylinder/4-Stroke/4-Valve缸径x冲程 BoreX Stroke  125X 147mm排量 Displacement   11L自己的外观大小 Dimension  长X宽X高(LXWX H) 1360 x 833X 1068 mm净性能 Dry Weight   940kg

224-310KW康明斯发电机组用起驱力的共同点：球小些， 缩短比较高， 格栅板的空气加温，有利开启，移動车载导航主机电源的首先。Compact size, high compression ratio, gile heated by air, easy for start-up, the first option of mobile vehicle power supply.

推荐机型Engine Models Recommended

汽车发心理机型	普遍工率(kW)Prime Power	紧急工作功率kW)Standby Power
MTA11-G2	224	246
MTAA11-G3	282	310
